Product Name : WIRELESS MICROPHONE SYSTEM
Product Model : PW-950Tx,PW-950Rx
Patent No.:
M420859
201210034977.6
FEATURES
Patent design

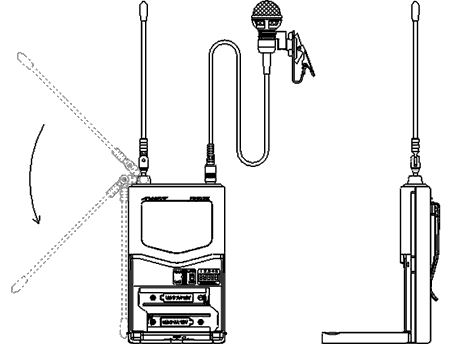

Antenna is 360° turned for easy use and storage.
Look
Pocket-sized transmitter is light weight and holds easily and comfortably.
Battery cover prevents the setting changing by accident.
Speak in the way you want
Low battery LED reminder ensures the best use condition.
It accepts headset microphone; tie-clip microphone or a small wired handle microphone.
Multiple channel selections
Product Model : PW-950Tx,PW-950Rx
Patent No.:
M420859
201210034977.6
FEATURES
Patent design
Antenna is 360° turned for easy use and storage.
Look
Pocket-sized transmitter is light weight and holds easily and comfortably.
Battery cover prevents the setting changing by accident.
Speak in the way you want
Low battery LED reminder ensures the best use condition.
It accepts headset microphone; tie-clip microphone or a small wired handle microphone.
Multiple channel selections
SPECIFICATION
Carrier Frequency Range：UHF 614 ~ 952 M Hz
RF Power Output：10 mW (max)
Power Consumption：80 mA
Modulation：Frequency Modulation
Oscillator Mode：PLL synthesized; 32 channel selectable
Spurious Emission：＞ 60 dB below carrier frequency
Peak Deviation：± 48 K Hz
Frequency Stability：± 0.005 ％
Antenna：Patent Design
MIC：mic with φ3.5 plug (headset; tie-clip or a small wired handle mic)
Battery：DC 1.5V (UM-3) x 2
Dimensions：66 x 112 x 25 mm (L x W x H)
Weight：130g (w/o battery)
Remark：Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
