Product Name : WIRELESS MICROPHONE SYSTEM
Product Model : WM-915
Patent No.:
Pat. I339535 Pat. M410418
Pat. M363752 ZL2011 2 0561070.6 FEATURE
Patent design
Water resistant: Don't worry about the damage from the liquid or battery leakage anymore.
Flash LED light: Let users know when singing or speaking.
Look
The design of hexagonal rubber ring prevents rolling.
Excellent holding texture is from the zinc die casting grip.
Basket with dual layers and braze welding improve hardness.
Sing what you want
Shock resistant microphone unit avoids the frictional noise due to holding the grip.
Polar pattern -CARDIOID; prevent the feedback and interference

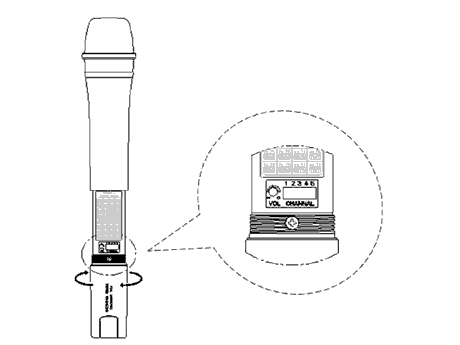

Multiple channel selections
Product Model : WM-915
Patent No.:
Pat. I339535 Pat. M410418
Pat. M363752 ZL2011 2 0561070.6 FEATURE
Patent design
Water resistant: Don't worry about the damage from the liquid or battery leakage anymore.
Flash LED light: Let users know when singing or speaking.
Look
The design of hexagonal rubber ring prevents rolling.
Excellent holding texture is from the zinc die casting grip.
Basket with dual layers and braze welding improve hardness.
Sing what you want
Shock resistant microphone unit avoids the frictional noise due to holding the grip.
Polar pattern -CARDIOID; prevent the feedback and interference
Multiple channel selections
SPECIFICATION
Carrier Frequency Range：UHF 614 ~ 952 M Hz
RF Power Output：10 mW (max)
Power Consumption：80 mA
Modulation：Frequency Modulation
Oscillator Mode：PLL synthesized; 32 channel selectable
Spurious Emission：＞ 60 dB below carrier frequency
Peak Deviation：± 48 K Hz
Frequency Stability：± 0.005 ％
Antenna：Built-in
Capsules：Dynamic
Battery：DC 1.5V (UM-3) x 2
Dimensions：φ53 x 240 mm
Weight：390g ( w/o battery )
Remark：Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
